257-602 | WAGO
PCB terminal, 2 pole, pitch 10 mm, AWG 28-12, 24 A, cage clamp, gray, 257-602
Unit Price (€ / pc.)
1.1067 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
1.11 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1067 €
10 pcs.
1.0115 €
50 pcs.
0.9282 €
100 pcs.
0.8330 €
*incl. VAT plus shipping costs
**Subject to prior sale

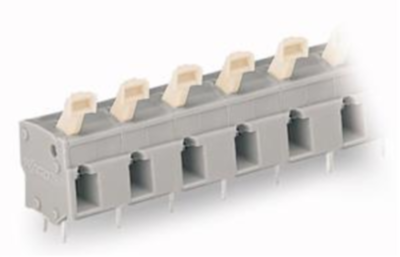

PCB terminal, 257-602, WAGO
PCB terminal block, push-button, 2.5 mm², pin spacing: 10/10.16 mm, 2-pole, CAGE CLAMP, 2.50 mm², gray.
Features
- PCB terminal blocks with push-buttons and CAGE CLAMP connection
- Ideal for in-the-field wiring thanks to simplified push-button actuation
- Convenient, tool-free operation
Technical specifications
| Anschluss | Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 28-12 | |
| Breite | 22.9 mm | |
| Farbe | grau | |
| Höhe | 24.4 mm | |
| Kontaktabstand | RM 10/10,16 | |
| Leiterquerschnitt | 0,08-2,5 mm² | |
| Nennspannung | 1 kV | |
| Nennstrom | 24 A | |
| Polzahl | 2-polig | |
| Rastermaß | 10 mm | |
| Tiefe | 22.9 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
