257-616 | WAGO
PCB terminal, 16 pole, pitch 10 mm, AWG 28-12, 24 A, cage clamp, gray, 257-616
Unit Price (€ / pc.)
6.9615 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

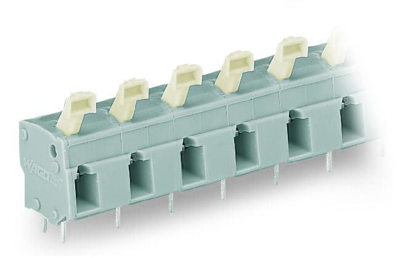

PCB terminal block, 257-616, WAGO
PCB terminal block, push-button, 2.5 mm², Pin spacing 10/10.16 mm, 16-pole, commoning option, 2.5 mm², gray.
Features
- PCB terminal blocks with push-buttons and CAGE CLAMP connection
- Ideal for in-the-field wiring thanks to simplified push-button actuation
- Convenient, tool-free operation

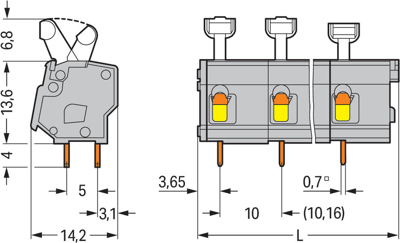

Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-12 | |
| Width | 162.9 mm | |
| Colour | gray | |
| Height | 24.4 mm | |
| Contact distance | RM 10/10.16 | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 1 kV | |
| Rated current | 24 A | |
| Pin number | 16 pole | |
| Grid | 10 mm | |
| Depth | 14.2 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
