257-743/999-950 | WAGO
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 16 A, cage clamp, light gray, 257-743/999-950
Unit Price (€ / pc.)
0.8330 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.8092 €
50 pcs.
0.7616 €
*incl. VAT plus shipping costs
**Subject to prior sale

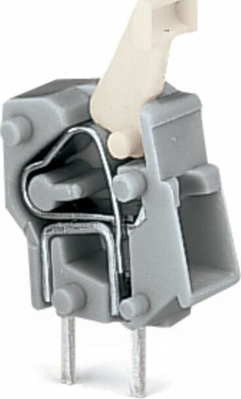

PCB terminal block, 257-743/999-950, WAGO
Stackable PCB terminal block, push-button, 2.5 mm², Pin spacing 5/5.08 mm, 1-pole, suitable for Ex-e applications, CAGE CLAMP, commoning option, 2.50 mm², light gray.
Features
- Modular PCB terminal blocks with push-buttons and CAGE CLAMP connection
- Ideal for in-the-field wiring thanks to simplified push-button actuation
- Convenient, tool-free operation
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-12 | |
| Width | 7.8 mm | |
| Colour | light gray | |
| Height | 24.4 mm | |
| Contact distance | RM 5/5.08 | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 176 V | |
| Rated current | 16 A | |
| Pin number | 1 pole | |
| Grid | 5 mm | |
| Depth | 14.2 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
