2601-1103 | WAGO

PCB terminal, 3 pole, pitch 3.5 mm, AWG 26-14, 17.5 A, push-in cage clamp, gray, 2601-1103

Order No.: 09H792
EAN: 4066966241877
MPN:
2601-1103
Series: 2601

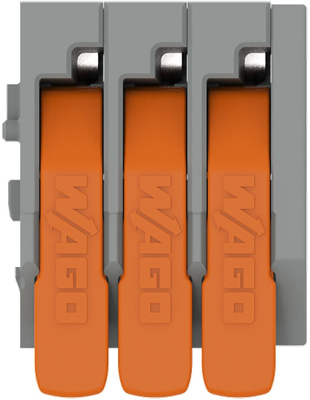

2601-1103 WAGO PCB Terminal Blocks Image 1

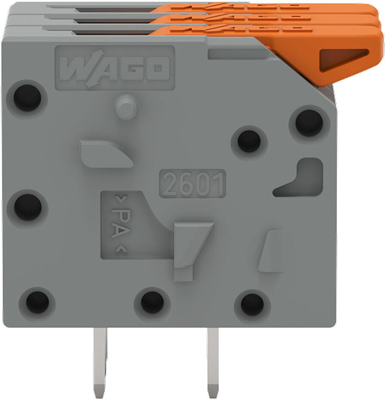

2601-1103 WAGO PCB Terminal Blocks Image 2

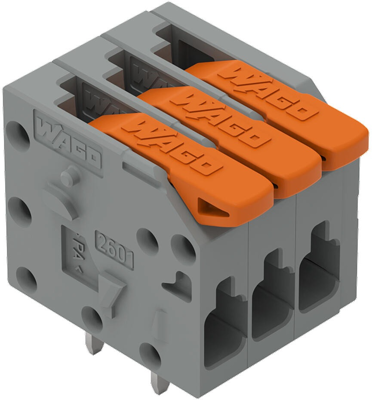

2601-1103 WAGO PCB Terminal Blocks Image 3

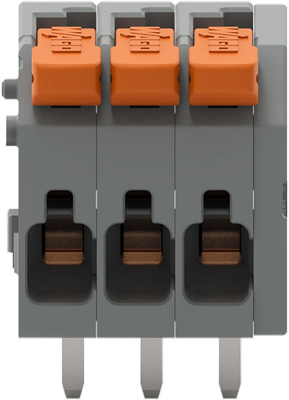

2601-1103 WAGO PCB Terminal Blocks Image 4

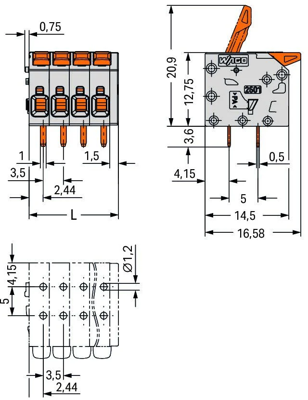

2601-1103 WAGO PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
1.5946 € *
Available: 42 pcs.
Available in 5 Days: 1,837 pcs.
Leadtime: 4 Weeks **
Total Price:
1.59 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.5946 €

PCB terminal block, 2601-1103, WAGO

PCB terminal block with Push-in CAGE CLAMP connection, with operating lever, 26-14 AWG, Pin spacing: 3.5 mm, 3-pole, conductor cross-section: 1.5 mm², color: gray.

Features

  • Push-in termination of solid and ferruled conductors
  • Intuitive and tool-free operation
  • Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
  • Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
Anschluss Push-in Käfigklemme
AWG-Leiterquerschnitt AWG 26-14
Breite 12 mm
Farbe grau
Höhe 16.35 mm
Kontaktabstand RM 5/3,5
Leiterquerschnitt 1,5 mm²
Nennspannung 320 V
Nennstrom 17.5 A
Polzahl 3-polig
Rastermaß 3.5 mm
Tiefe 16.58 mm
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
