PCB terminal, 11 pole, pitch 3.5 mm, AWG 26-14, 10 A, push-in cage clamp, gray, 2601-1111
Unit Price (€ / pc.)
5.9976 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

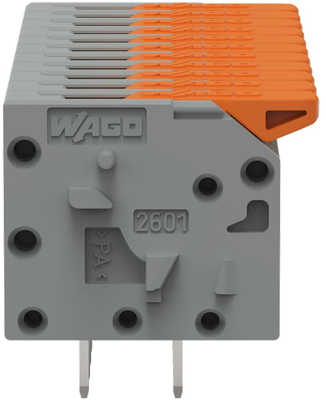

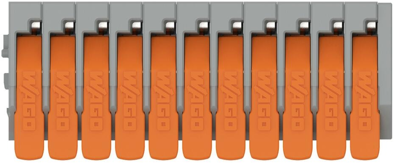

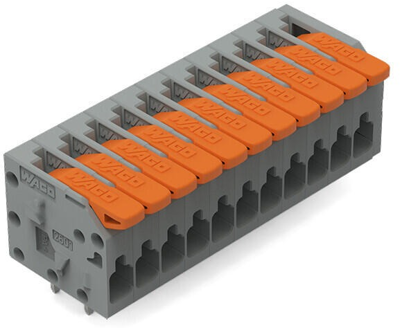

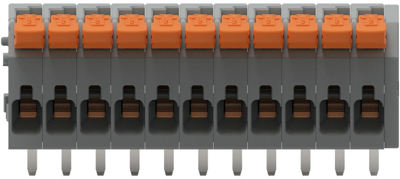

PCB terminal block, 2601-1111, WAGO
PCB terminal block with Push-in CAGE CLAMP connection, with operating lever, 26-14 AWG, Pin spacing: 3.5 mm, 11-pole, conductor cross-section: 1.5 mm², color: gray.
Features
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 26-14 | |
| Breite | 40 mm | |
| Farbe | grau | |
| Höhe | 16.35 mm | |
| Kontaktabstand | RM 5/3,5 | |
| Leiterquerschnitt | 1,5 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 10 A | |
| Polzahl | 11-polig | |
| Rastermaß | 3.5 mm | |
| Tiefe | 16.58 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
