2604-1101/000-023 | WAGO

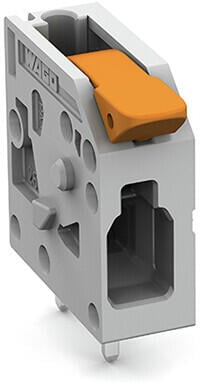

PCB terminal, 1 pole, pitch 5 mm, AWG 24-12, 32 A, push-in cage clamp, green, 2604-1101/000-023
Unit Price (€ / pc.)
1.1424 € *
Available: 0 pcs.
Leadtime: On Request **
PCB terminal block, 2604-1101/000-023, WAGO
PCB terminal block, lever, 4 mm², Pin spacing 5 mm, 1-pole, Push-in cage clamp, 4,00 mm², green.
Features
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry

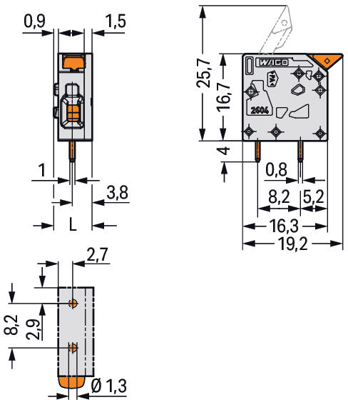

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-12 | |
| Breite | 7.4 mm | |
| Farbe | grün | |
| Höhe | 20.7 mm | |
| Leiterquerschnitt | 0,2-4,0 mm² | |
| Nennspannung | 400 V | |
| Nennstrom | 32 A | |
| Polzahl | 1-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 19.2 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
