2604-1102/000-023 | WAGO
PCB terminal, 2 pole, pitch 5 mm, AWG 24-12, 32 A, push-in cage clamp, green, 2604-1102/000-023
Unit Price (€ / pc.)
1.9754 € *
Available: 0 pcs.
Leadtime: On Request **
PCB terminal block, 2604-1102/000-023, WAGO
PCB terminal block, lever, 4 mm², Pin spacing 5 mm, 2-pole, Push-in cage clamp, 4,00 mm², green.
Features
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry

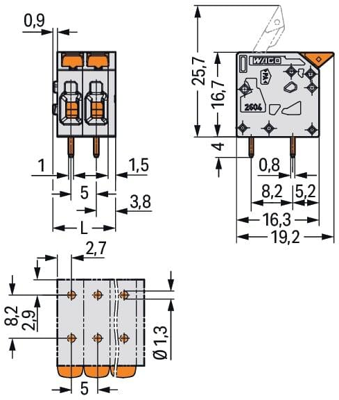

Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 24-12 | |
| Width | 12.4 mm | |
| Colour | green | |
| Height | 20.7 mm | |
| Cable cross-section | 0.2-4.0 mm² | |
| Rated voltage | 400 V | |
| Rated current | 32 A | |
| Pin number | 2 pole | |
| Grid | 5 mm | |
| Depth | 19.2 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
