2604-1104 | WAGO
PCB terminal, 4 pole, pitch 5 mm, AWG 24-12, 32 A, push-in cage clamp, gray, 2604-1104
Unit Price (€ / pc.)
4.4982 € *
Available: 39 pcs.
Leadtime: 4 Weeks **
Total Price:
4.50 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4982 €
10 pcs.
4.1412 €
50 pcs.
3.7604 €
100 pcs.
3.3796 €
*incl. VAT plus shipping costs
**Subject to prior sale

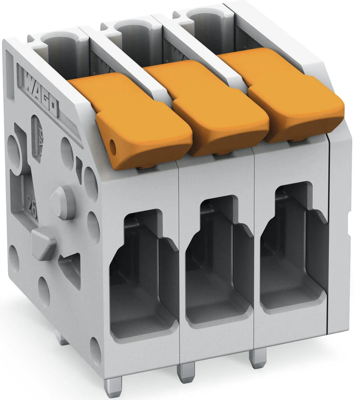

PCB terminal, 2604-1104, WAGO
PCB terminal block, lever, 4 mm², pin spacing: 5 mm, 4-pole, push-in cage clamp, 4.00 mm², gray.
Features
- PCB terminal blocks with push-in cage clamp connection and levers
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Overvoltage category: III
- Pollution degree: 2

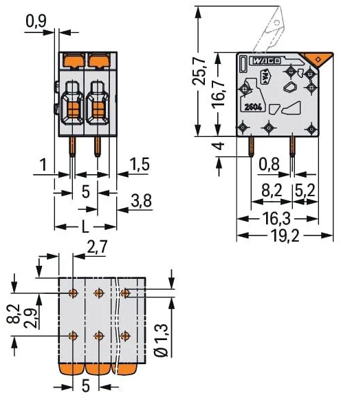

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-12 | |
| Breite | 22 mm | |
| Farbe | grau | |
| Höhe | 20.7 mm | |
| Leiterquerschnitt | 0,2-4,0 mm² | |
| Nennspannung | 400 V | |
| Nennstrom | 32 A | |
| Polzahl | 4-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 19.2 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
