2604-3104 | WAGO
PCB terminal, 4 pole, pitch 5 mm, AWG 24-12, 32 A, push-in cage clamp, gray, 2604-3104
Unit Price (€ / pc.)
4.4982 € *
Available: 86 pcs.
Leadtime: On Request **
Total Price:
4.50 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4982 €
10 pcs.
4.1412 €
50 pcs.
3.7604 €
100 pcs.
3.3796 €
*incl. VAT plus shipping costs
**Subject to prior sale

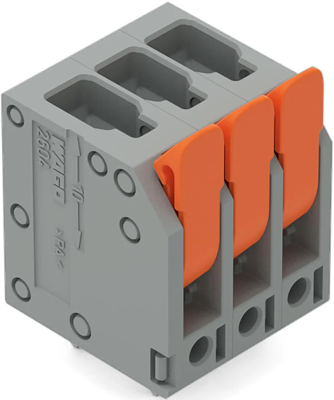

PCB terminal, 2604-3104, WAGO
PCB terminal block, lever, 4 mm², pin spacing: 5 mm, 4-pole, push-in cage clamp, 4.00 mm², gray.
Features
- PCB terminal blocks with lever-actuated push-in cage clamp connection.
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Overvoltage category: III
- Pollution degree: 2

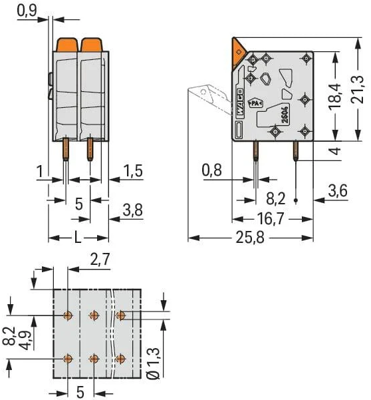

Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 24-12 | |
| Width | 22 mm | |
| Colour | gray | |
| Height | 25.3 mm | |
| Cable cross-section | 0.2-4.0 mm² | |
| Rated voltage | 400 V | |
| Rated current | 32 A | |
| Pin number | 4 pole | |
| Grid | 5 mm | |
| Depth | 16.7 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
