2604-3503 | WAGO
PCB terminal, 3 pole, pitch 11.5 mm, AWG 24-12, 32 A, push-in cage clamp, gray, 2604-3503
Unit Price (€ / pc.)
3.2606 € *
Available: 102 pcs.
Available in 5 Days: 2,323 pcs.
Leadtime: 3 Weeks **

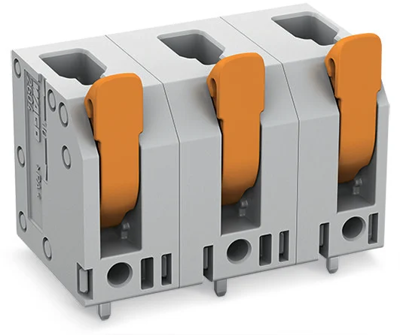

PCB terminal, 2604-3503, WAGO
PCB terminal block, lever, 4 mm², pin spacing: 11.5 mm, 3-pole, push-in cage clamp, 4.00 mm², gray.
Features
- PCB terminal blocks with push-in cage clamp connection and levers
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Overvoltage category: III
- Pollution degree: 2

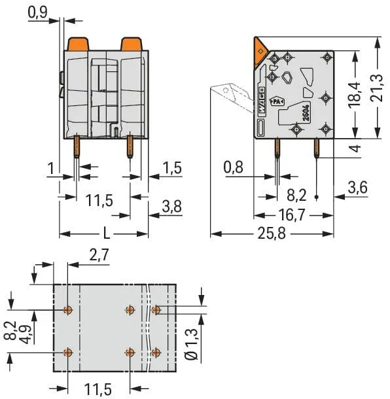

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-12 | |
| Breite | 30.4 mm | |
| Farbe | grau | |
| Höhe | 25.3 mm | |
| Leiterquerschnitt | 0,2-4,0 mm² | |
| Nennspannung | 1 kV | |
| Nennstrom | 32 A | |
| Polzahl | 3-polig | |
| Rastermaß | 11.5 mm | |
| Tiefe | 16.7 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
