2606-1102/020-006 | WAGO
PCB terminal, 2 pole, pitch 7.5 mm, AWG 24-8, 41 A, push-in cage clamp, blue, 2606-1102/020-006
Unit Price (€ / pc.)
3.7842 € *
Available: 0 pcs.
Leadtime: On Request **
PCB terminal block, 2606-1102/020-006, WAGO
PCB terminal block, lever, 6 mm², Pin spacing 7.5 mm, 2-pole, Push-in cage clamp, 6.00 mm², blue.
Features
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry

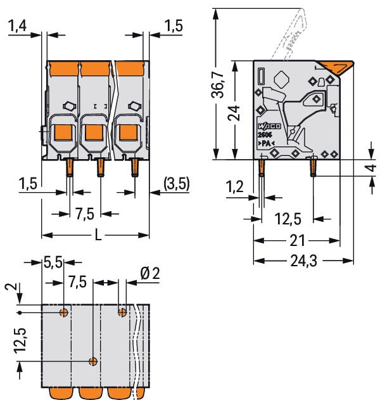

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-8 | |
| Breite | 17.85 mm | |
| Farbe | blau | |
| Höhe | 28 mm | |
| Leiterquerschnitt | 0,2-10 mm² | |
| Nennspannung | 1 kV | |
| Nennstrom | 41 A | |
| Polzahl | 2-polig | |
| Rastermaß | 7.5 mm | |
| Tiefe | 24.3 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
