2606-1102 | WAGO
PCB terminal, 2 pole, pitch 7.5 mm, AWG 24-8, 51 A, push-in cage clamp, gray, 2606-1102
Unit Price (€ / pc.)
4.1174 € *
Available: 93 pcs.
Leadtime: 4 Weeks **
Total Price:
4.12 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1174 €
10 pcs.
3.7842 €
50 pcs.
3.4391 €
100 pcs.
3.0940 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 2606-1102, WAGO
PCB terminal block, lever, 6 mm², pin spacing: 7.5 mm, 2-pole, push-in cage clamp, 6.00 mm², gray.
Features
- PCB terminal blocks with push-in cage clamp connection and levers
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Overvoltage category: III
- Pollution degree: 2

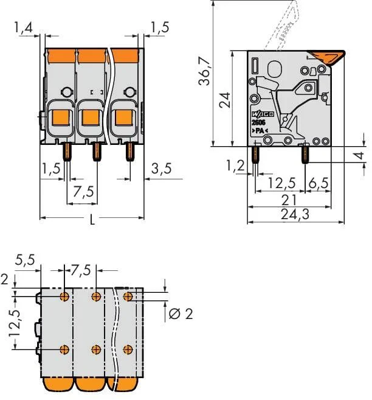

Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 24-8 | |
| Width | 17.85 mm | |
| Colour | gray | |
| Height | 28 mm | |
| Contact distance | RM 7.5/12.5 | |
| Cable cross-section | 0.2-10 mm² | |
| Rated voltage | 630 V | |
| Rated current | 51 A | |
| Pin number | 2 pole | |
| Grid | 7.5 mm | |
| Depth | 24.3 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
