PCB terminal, 3 pole, pitch 7.5 mm, AWG 24-8, 41 A, push-in cage clamp, gray, 2606-1103
Unit Price (€ / pc.)
5.1408 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

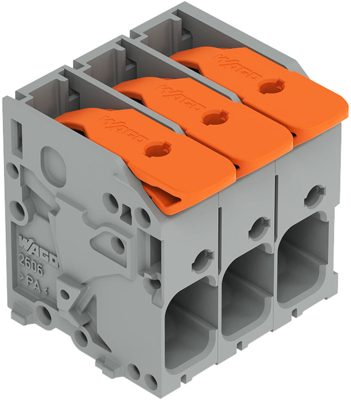

PCB terminal block, 2606-1103, WAGO
PCB terminal block, lever, 6 mm², Pin spacing 7.5 mm, 3-pole, Push-in cage clamp, 6.00 mm², gray.
Features
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry

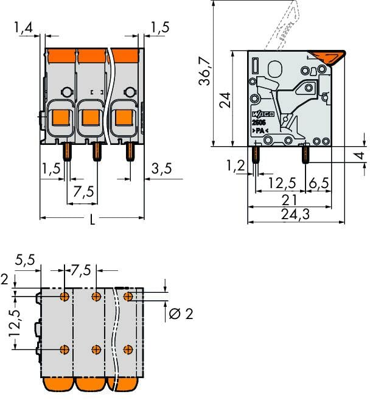

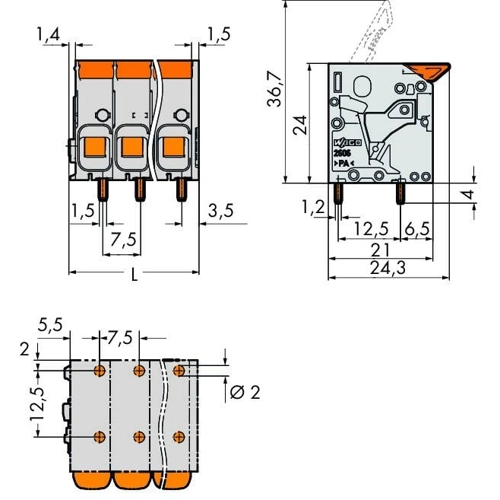

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-8 | |
| Breite | 25.35 mm | |
| Farbe | grau | |
| Höhe | 28 mm | |
| Leiterquerschnitt | 0,2-10 mm² | |
| Nennspannung | 630 V | |
| Nennstrom | 41 A | |
| Polzahl | 3-polig | |
| Rastermaß | 7.5 mm | |
| Tiefe | 24.3 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
