2606-1105 | WAGO
PCB terminal, 5 pole, pitch 7.5 mm, AWG 24-8, 41 A, push-in cage clamp, gray, 2606-1105
Unit Price (€ / pc.)
8.5799 € *
Available: 0 pcs.
Leadtime: On Request **

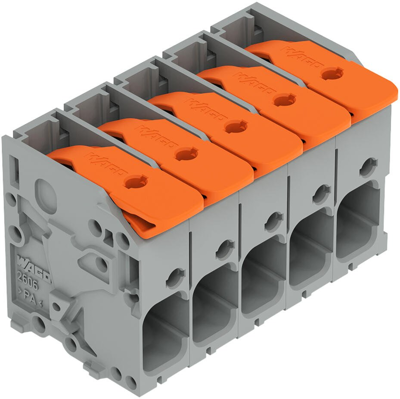

PCB terminal block, 2606-1105, WAGO
PCB terminal block, lever, 6 mm², Pin spacing 7.5 mm, 5-pole, Push-in cage clamp, 6.00 mm², gray.
Features
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry

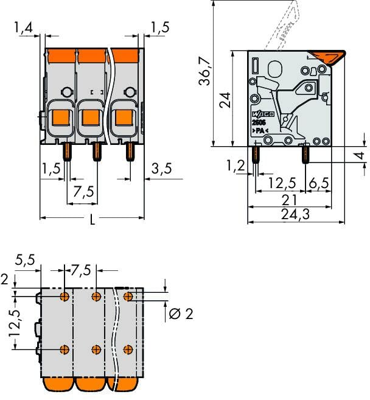

Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 24-8 | |
| Width | 40.35 mm | |
| Colour | gray | |
| Height | 28 mm | |
| Cable cross-section | 0.2-10 mm² | |
| Rated voltage | 630 V | |
| Rated current | 41 A | |
| Pin number | 5 pole | |
| Grid | 7.5 mm | |
| Depth | 24.3 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
