2606-1352 | WAGO
PCB terminal, 2 pole, pitch 12.5 mm, AWG 24-8, 41 A, push-in cage clamp, gray, 2606-1352
Unit Price (€ / pc.)
3.4748 € *
Available: 22 pcs.
Available in 5 Days: 3,612 pcs.
Leadtime: 3 Weeks **

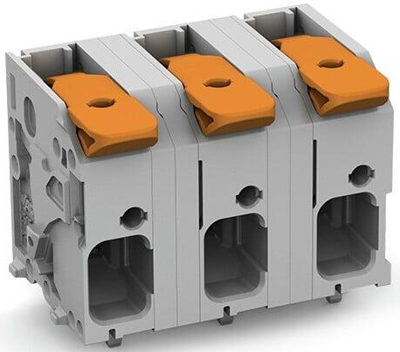

PCB terminal block, 2606-1352, WAGO
PCB terminal block with push-in cage clamp connection and levers, and push-in termination of solid and ferrule conductors. Intuitive, tool-free operation, and several clamping units that can be held open simultaneously, simplifying the connection of multi-core cables. Testing can be performed both parallel and perpendicular to the conductor entry.
Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-8 | |
| Breite | 21.5 mm | |
| Farbe | grau | |
| Höhe | 28 mm | |
| Leiterquerschnitt | 0,2-10 mm² | |
| Nennspannung | 1000 V | |
| Nennstrom | 41 A | |
| Polzahl | 2-polig | |
| Rastermaß | 12.5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
