2606-1359 | WAGO
PCB terminal, 9 pole, pitch 12.5 mm, 6.0 mm², 41 A, push-in cage clamp, gray, 2606-1359
Unit Price (€ / pc.)
15.9222 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

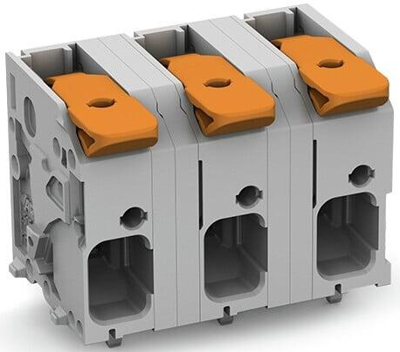

PCB terminal block, 2606-1359, WAGO
PCB terminal block with push-in cage clamp connection and levers, and push-in termination of solid and ferrule conductors. Intuitive, tool-free operation, and several clamping units that can be held open simultaneously, simplifying the connection of multi-core cables. Testing can be performed both parallel and perpendicular to the conductor entry.

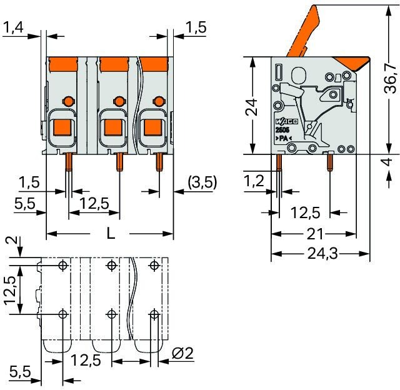

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| Breite | 109 mm | |
| Farbe | grau | |
| Höhe | 28 mm | |
| Leiterquerschnitt | 6,0 mm² | |
| Nennspannung | 1000 V | |
| Nennstrom | 41 A | |
| Polzahl | 9-polig | |
| Rastermaß | 12.5 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
