2616-1106/010-000 | WAGO
PCB terminal, 6 pole, pitch 10 mm, AWG 18-4, 76 A, push-in cage clamp, gray, 2616-1106/010-000
Unit Price (€ / pc.)
20.6108 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
PCB terminal block, 2616-1106/010-000, WAGO
PCB terminal block, lever, 16 mm², Pin spacing 10 mm, 6-pole, Push-in cage clamp, 16.00 mm², gray.
Features
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry

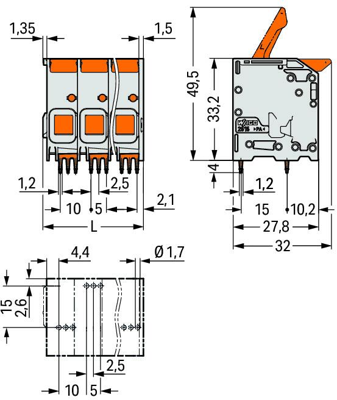

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 18-4 | |
| Breite | 62.8 mm | |
| Farbe | grau | |
| Höhe | 37.2 mm | |
| Leiterquerschnitt | 0,75-16 mm² | |
| Nennspannung | 1 kV | |
| Nennstrom | 76 A | |
| Polzahl | 6-polig | |
| Rastermaß | 10 mm | |
| Tiefe | 32 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
