PCB terminal, 7 pole, pitch 15 mm, AWG 4, 76 A, push-in cage clamp, gray, 2616-1357
Unit Price (€ / pc.)
24.3593 € *
Available: 0 pcs.
Leadtime: On Request **
PCB terminal block, 2616-1357, WAGO
PCB terminal block, lever, 16 mm², Pin spacing 15 mm, 7-pole, Push-in CAGE CLAMP, 16,00 mm², gray.
Features
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry0

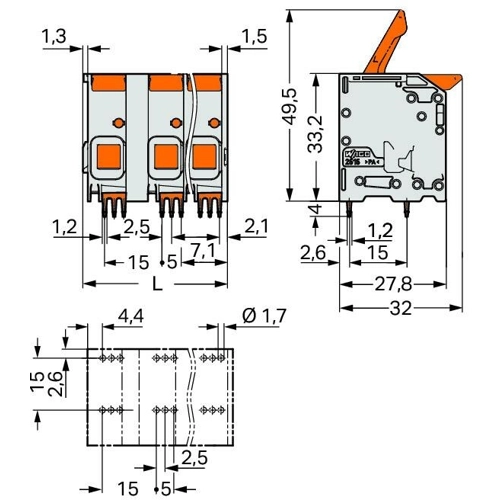

Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 4 | |
| Width | 101.5 mm | |
| Colour | gray | |
| Height | 37.2 mm | |
| Cable cross-section | 16 mm² | |
| Rated voltage | 1000 V | |
| Rated current | 76 A | |
| Pin number | 7 pole | |
| Grid | 15 mm | |
| Depth | 32 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
