2616-3107/020-000 | WAGO
PCB terminal, 7 pole, pitch 10 mm, AWG 4, 76 A, push-in cage clamp, gray, 2616-3107/020-000
Unit Price (€ / pc.)
21.9079 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
PCB terminal block, 2616-3107/020-000, WAGO
PCB terminal block, lever, 16 mm², Pin spacing 10 mm, 7-pole, Push-in CAGE CLAMP, 16,00 mm², gray.
Features
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry0

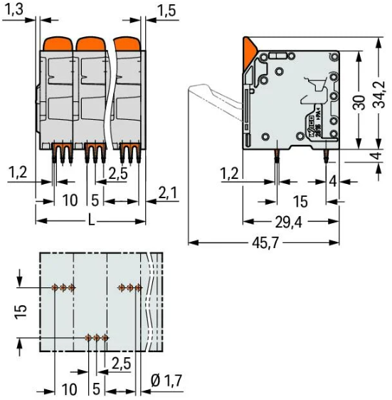

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 4 | |
| Breite | 72.8 mm | |
| Farbe | grau | |
| Höhe | 38.2 mm | |
| Leiterquerschnitt | 16 mm² | |
| Nennspannung | 1000 V | |
| Nennstrom | 76 A | |
| Polzahl | 7-polig | |
| Rastermaß | 10 mm | |
| Tiefe | 29.4 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
