PCB terminal, 4 pole, pitch 5 mm, AWG 24-10, 41 A, push-in cage clamp, gray, 2624-1104
Unit Price (€ / pc.)
2.7608 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
PCB terminal, 2624-1104, WAGO
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 160 V, nominal cross section: 1 mm², number of potentials: 5, number of rows: 1, number of positions per row: 5, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear double pinning, solder pin: 2.6 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Finger-operated release button for very convenient operation
- Quick and convenient testing using integrated test option
- Pollution degree: 2

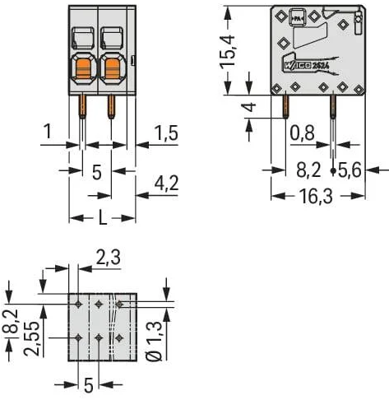

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-10 | |
| Breite | 21.5 mm | |
| Farbe | grau | |
| Höhe | 19.4 mm | |
| Kontaktabstand | RM 5/8,2 | |
| Leiterquerschnitt | 0,2-6,0 mm² | |
| Nennspannung | 400 V | |
| Nennstrom | 41 A | |
| Polzahl | 4-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 16.3 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
