2624-1512 | WAGO

PCB terminal, 12 pole, pitch 11.5 mm, AWG 24-10, 41 A, push-in cage clamp, gray, 2624-1512

Order No.: 43P9739
EAN: 4055143578707
MPN:
2624-1512
Series: 2624
WAGO

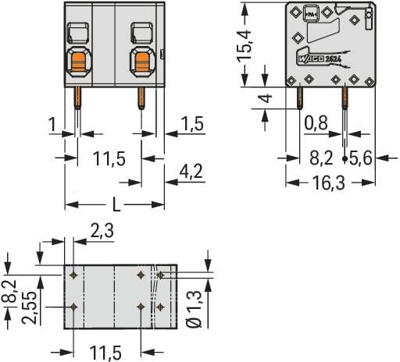

2624-1512 WAGO PCB Terminal Blocks Image 1

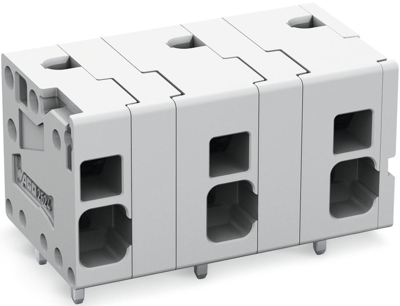

2624-1512 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
10.3292 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.33 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
10.3292 €

PCB terminal, 2624-1512, WAGO

PCB terminal block, 4 mm², pin spacing: 11.5 mm, 12-pole, push-in cage clamp, 4.00 mm², gray.

Features

  • PCB terminal blocks with push-in cage clamp connection
  • Push-in termination of solid and ferruled conductors
  • Ideal for panel feedthrough applications via operation parallel to conductor entry
  • Overvoltage category: III
  • Pollution degree: 2
Technical specifications
Connection push-in cage clamp
AWG cross-section AWG 24-10
Width 133 mm
Colour gray
Height 19.4 mm
Contact distance RM 8.2/11.5
Cable cross-section 0.2-6.0 mm²
Rated voltage 1 kV
Rated current 41 A
Pin number 12 pole
Grid 11.5 mm
Depth 16.3 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
