2624-3105 | WAGO
PCB terminal, 5 pole, pitch 5 mm, AWG 24-10, 41 A, push-in cage clamp, gray, 2624-3105
Unit Price (€ / pc.)
3.4510 € *
Available: 0 pcs.
Leadtime: On Request **
PCB terminal, 2624-3105, WAGO
PCB terminal block, 4 mm², pin spacing: 5 mm, 5-pole, push-in cage clamp, 4.00 mm², gray.
Features
- PCB terminal blocks with push-in cage clamp connection
- Push-in termination of solid and ferruled conductors
- Ideal for panel feedthrough applications via operation parallel to conductor entry
- Overvoltage category: III
- Pollution degree: 2

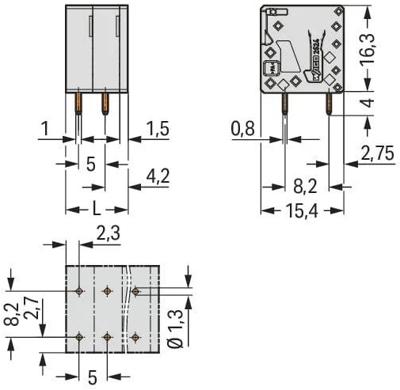

Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 24-10 | |
| Width | 26.5 mm | |
| Colour | gray | |
| Height | 20.3 mm | |
| Contact distance | RM 5/8.2 | |
| Cable cross-section | 0.2-6.0 mm² | |
| Rated voltage | 400 V | |
| Rated current | 41 A | |
| Pin number | 5 pole | |
| Grid | 5 mm | |
| Depth | 15.4 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
