PCB terminal, 4 pole, pitch 7.5 mm, AWG 24-8, 48 A, push-in cage clamp, gray, 2626-1104/020-000
Unit Price (€ / pc.)
5.3312 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
PCB terminal, 2626-1104/020-000, WAGO
PCB terminal block, 6 mm², pin spacing: 7.5 mm, 4-pole, push-in cage clamp, 6.00 mm², gray.
Features
- PCB terminal strips with push-in cage clamp connection
- Push-in termination of solid and ferruled conductors
- Ideal for panel feedthrough applications via operation parallel to conductor entry
- Overvoltage category: III
- Pollution degree: 2

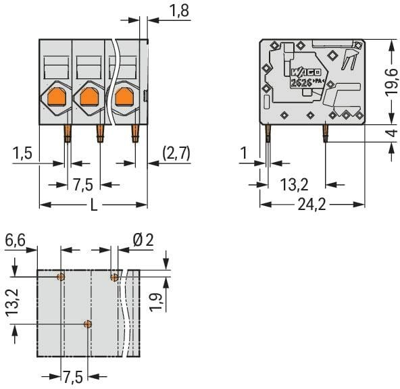

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-8 | |
| Breite | 31.8 mm | |
| Farbe | grau | |
| Höhe | 23.6 mm | |
| Kontaktabstand | RM 7,5/13,2 | |
| Leiterquerschnitt | 0,2-10 mm² | |
| Nennspannung | 1 kV | |
| Nennstrom | 48 A | |
| Polzahl | 4-polig | |
| Rastermaß | 7.5 mm | |
| Tiefe | 24.2 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
