2626-1105/020-004 | WAGO

PCB terminal, 5 pole, pitch 7.5 mm, AWG 24-8, 48 A, push-in cage clamp, black, 2626-1105/020-004

Order No.: 44P9317
EAN: 4055143766012
MPN:
2626-1105/020-004
Series: 2626
WAGO

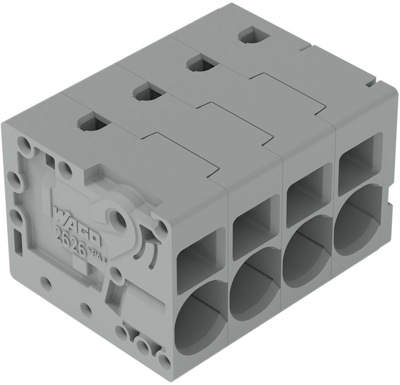

2626-1105/020-004 WAGO PCB Terminal Blocks Image 1

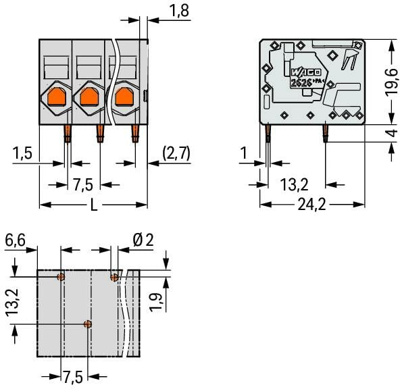

2626-1105/020-004 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
8.5799 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
8.58 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
8.5799 €

PCB terminal block, 2626-1105/020-004, WAGO

PCB terminal block, 6 mm², Pin spacing 7.5 mm, 5-pole, Push-in cage clamp, 6.00 mm², black.

Features

  • Ideal for panel feedthrough applications via operation parallel to conductor entry
  • Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
Connection push-in cage clamp
AWG cross-section AWG 24-8
Width 39.3 mm
Colour black
Height 23.6 mm
Cable cross-section 0.2-10 mm²
Rated voltage 1 kV
Rated current 48 A
Pin number 5 pole
Grid 7.5 mm
Depth 24.2 mm
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
