2626-1354 | WAGO
PCB terminal, 4 pole, pitch 12.5 mm, AWG 24-8, 48 A, push-in cage clamp, gray, 2626-1354
Unit Price (€ / pc.)
7.7945 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
PCB terminal block, 2626-1354, WAGO
PCB terminal block, 6 mm², Pin spacing 12.5 mm, 4-pole, Push-in cage clamp, 6.00 mm², gray.
Features
- Ideal for panel feedthrough applications via operation parallel to conductor entry
- Testing can be performed both parallel and perpendicular to conductor entry

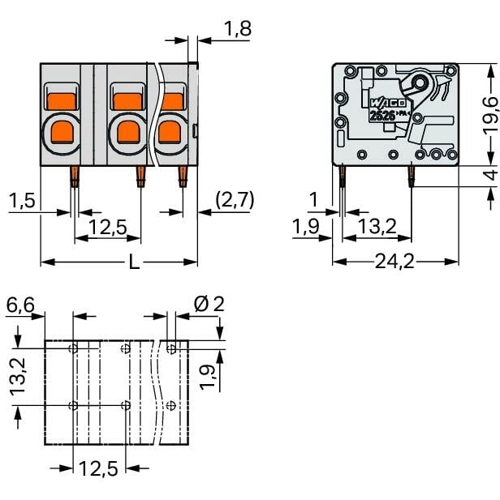

Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 24-8 | |
| Width | 46.8 mm | |
| Colour | gray | |
| Height | 23.6 mm | |
| Cable cross-section | 0.2-10 mm² | |
| Rated voltage | 1 kV | |
| Rated current | 48 A | |
| Pin number | 4 pole | |
| Grid | 12.5 mm | |
| Depth | 24.2 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
