2626-3104 | WAGO
PCB terminal, 4 pole, pitch 7.5 mm, AWG 24-8, 48 A, push-in cage clamp, gray, 2626-3104
Unit Price (€ / pc.)
6.2475 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
PCB terminal block, 2626-3104, WAGO
PCB terminal block, 6 mm², Pin spacing 7.5 mm, 4-pole, Push-in cage clamp, 6.00 mm², gray.
Features
- Ideal for panel feedthrough applications via operation parallel to conductor entry
- Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-8 | |

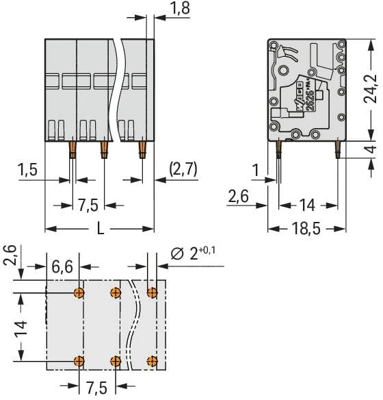

| Breite | 31.8 mm | |
| Farbe | grau | |
| Höhe | 28.2 mm | |
| Leiterquerschnitt | 0,2-10 mm² | |
| Nennspannung | 630 V | |
| Nennstrom | 48 A | |
| Polzahl | 4-polig | |
| Rastermaß | 7.5 mm | |
| Tiefe | 18.5 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
