2636-1103/020-004 | WAGO

PCB terminal, 3 pole, pitch 10 mm, AWG 18-4, 76 A, push-in cage clamp, black, 2636-1103/020-004

Order No.: 44P9331
EAN: 4055143765992
MPN:
2636-1103/020-004
Series: 2636
WAGO

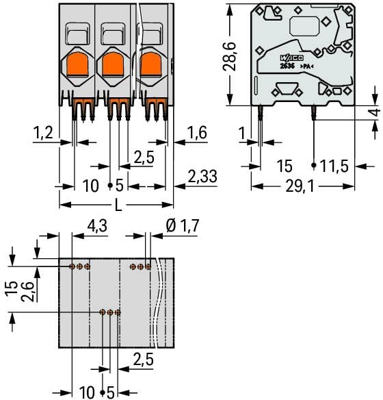

2636-1103/020-004 WAGO PCB Terminal Blocks Image 1

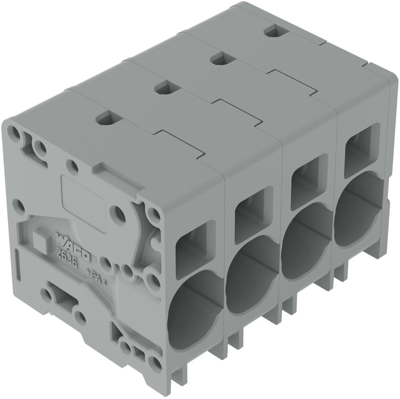

2636-1103/020-004 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
10.2935 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
10.29 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
10.2935 €

PCB terminal block, 2636-1103/020-004, WAGO

PCB terminal block, 16 mm², Pin spacing 10 mm, 3-pole, Push-in cage clamp, 16.00 mm², black.

Features

  • Ideal for panel feedthrough applications via operation parallel to conductor entry
  • Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
Connection push-in cage clamp
AWG cross-section AWG 18-4
Width 31.6 mm
Colour black
Height 32.6 mm
Cable cross-section 0.75-16 mm²
Rated voltage 1 kV
Rated current 76 A
Pin number 3 pole
Grid 10 mm
Depth 29.1 mm
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
