2636-1105/020-004 | WAGO
PCB terminal, 5 pole, pitch 10 mm, AWG 18-4, 76 A, push-in cage clamp, black, 2636-1105/020-004
Unit Price (€ / pc.)
17.1717 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
PCB terminal block, 2636-1105/020-004, WAGO
PCB terminal block, 16 mm², Pin spacing 10 mm, 5-pole, Push-in cage clamp, 16.00 mm², black.
Features
- Ideal for panel feedthrough applications via operation parallel to conductor entry
- Testing can be performed both parallel and perpendicular to conductor entry

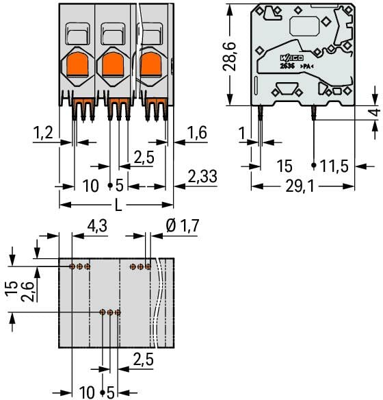

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 18-4 | |
| Breite | 51.6 mm | |
| Farbe | schwarz | |
| Höhe | 32.6 mm | |
| Leiterquerschnitt | 0,75-16 mm² | |
| Nennspannung | 1 kV | |
| Nennstrom | 76 A | |
| Polzahl | 5-polig | |
| Rastermaß | 10 mm | |
| Tiefe | 29.1 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
