2636-1106/020-000 | WAGO

PCB terminal, 6 pole, pitch 10 mm, AWG 18-4, 76 A, push-in cage clamp, gray, 2636-1106/020-000

Order No.: 43P9795
EAN: 4055143625357
MPN:
2636-1106/020-000
Series: 2636
WAGO

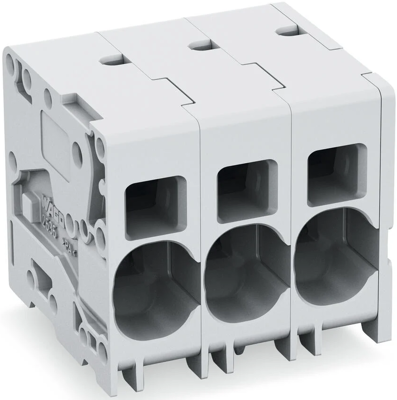

2636-1106/020-000 WAGO PCB Terminal Blocks Image 1
2636-1106/020-000 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
17.0527 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
17.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
17.0527 €

PCB terminal, 2636-1106/020-000, WAGO

PCB terminal block, 16 mm², pin spacing: 10 mm, 6-pole, push-in cage clamp, 16.00 mm², gray.

Features

  • PCB terminal strips with push-in cage clamp connection
  • Push-in termination of solid and ferruled conductors
  • Ideal for panel feedthrough applications via operation parallel to conductor entry
  • Overvoltage category: III
  • Pollution degree: 2
Technical specifications
Connection push-in cage clamp
AWG cross-section AWG 18-4
Width 61.6 mm
Colour gray
Height 32.6 mm
Contact distance RM 10/15
Cable cross-section 0.75-16 mm²
Rated voltage 1 kV
Rated current 76 A
Pin number 6 pole
Grid 10 mm
Depth 29.1 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
