2636-1108/020-000 | WAGO
PCB terminal, 8 pole, pitch 10 mm, AWG 18-4, 76 A, push-in cage clamp, gray, 2636-1108/020-000
Unit Price (€ / pc.)
22.7409 € *
Available: 0 pcs.
Leadtime: On Request **

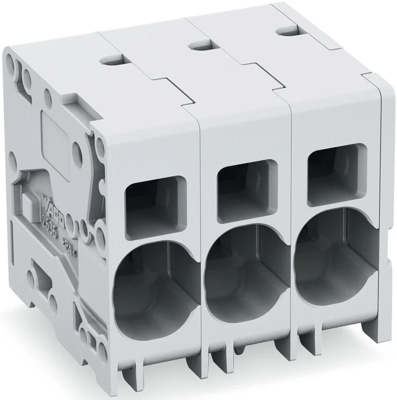

PCB terminal, 2636-1108/020-000, WAGO
PCB terminal block, 16 mm², pin spacing: 10 mm, 8-pole, push-in cage clamp, 16.00 mm², gray.
Features
- PCB terminal strips with push-in cage clamp connection
- Push-in termination of solid and ferruled conductors
- Ideal for panel feedthrough applications via operation parallel to conductor entry
- Overvoltage category: III
- Pollution degree: 2

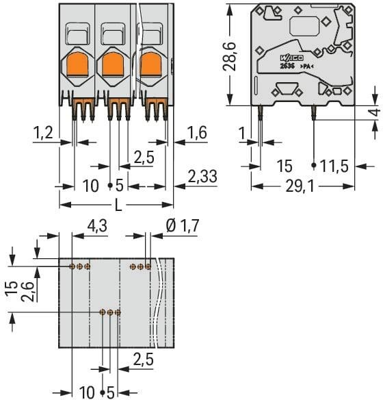

Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 18-4 | |
| Width | 81.6 mm | |
| Colour | gray | |
| Height | 32.6 mm | |
| Contact distance | RM 10/15 | |
| Cable cross-section | 0.75-16 mm² | |
| Rated voltage | 1 kV | |
| Rated current | 76 A | |
| Pin number | 8 pole | |
| Grid | 10 mm | |
| Depth | 29.1 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
