2636-1357 | WAGO

PCB terminal, 7 pole, pitch 15 mm, AWG 18-4, 76 A, push-in cage clamp, gray, 2636-1357

Order No.: 44P9346
EAN: 4055143861465
MPN:
2636-1357
Series: 2636
WAGO

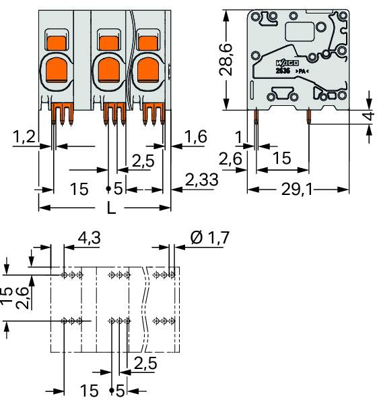

2636-1357 WAGO PCB Terminal Blocks Image 1

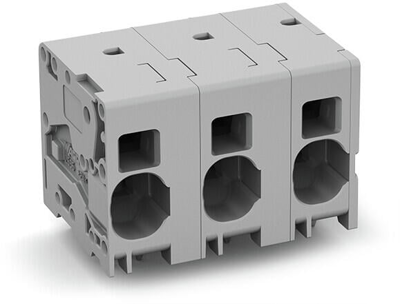

2636-1357 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
24.5854 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
24.59 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
24.5854 €

PCB terminal block, 2636-1357, WAGO

PCB terminal block, 16 mm², Pin spacing 15 mm, 7-pole, Push-in cage clamp, 16.00 mm², gray.

Features

  • Ideal for panel feedthrough applications via operation parallel to conductor entry
  • Testing can be performed both parallel and perpendicular to conductor entry
Technical specifications
Connection push-in cage clamp
AWG cross-section AWG 18-4
Width 101.6 mm
Colour gray
Height 32.6 mm
Cable cross-section 0.75-16 mm²
Rated voltage 1 kV
Rated current 76 A
Pin number 7 pole
Grid 15 mm
Depth 29.1 mm
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
