2706-103 | WAGO
PCB terminal, 3 pole, pitch 7.5 mm, AWG 20-10, 41 A, cage clamp, gray, 2706-103
Unit Price (€ / pc.)
3.8437 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.84 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8437 €
10 pcs.
3.4748 €
*incl. VAT plus shipping costs
**Subject to prior sale

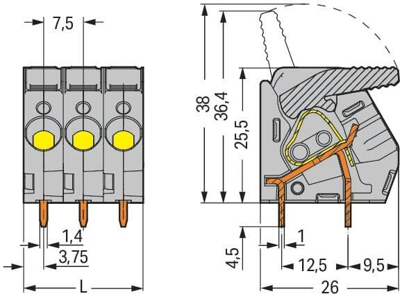

PCB terminal block with integrated pusher, type Wago
High-power terminal blocks with cage clamp terminals, no jumper slot. Several terminals of a block can be held open simultaneously; Thermal resistance: –60 to +105 °C.
7.5 mm grid, 2 solder pins per terminal.
Rated voltage: 630 V. Rated surge voltage: 6.0 kV. Rated current: 41 A. Height: 25.5 mm. Depth: 26 mm.
Type: 2706-103, 3-pole
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 20-10 | |
| Width | 22.5 mm | |
| Colour | gray | |
| Height | 30 mm | |
| Contact distance | RM 7.5/12.5 | |
| Cable cross-section | 0.5-6.0 mm² | |
| Rated voltage | 630 V | |
| Rated current | 41 A | |
| Pin number | 3 pole | |
| Grid | 7.5 mm | |
| Depth | 26 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
