2706-154 | WAGO
PCB terminal, 4 pole, pitch 7.5 mm, AWG 20-10, 41 A, cage clamp, gray, 2706-154
Unit Price (€ / pc.)
5.2836 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
5.28 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2836 €
10 pcs.
4.7481 €
*incl. VAT plus shipping costs
**Subject to prior sale

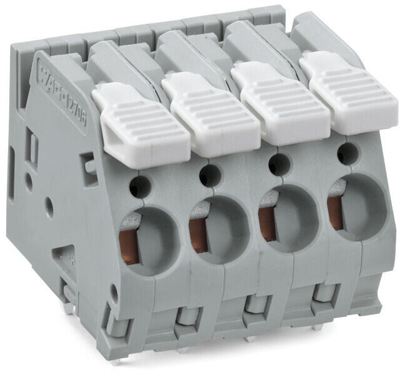

PCB terminal, 2706-154, WAGO
PCB terminal block, lever, 6 mm², pin spacing: 7.5 mm, 4-pole, CAGE CLAMP, 6.00 mm², gray.
Features
- High-current PCB terminal strips with lever-actuated CAGE CLAMP connection
- Tool-free termination – fingers open/close levers
- Several clamping units can be held open simultaneously – convenient for terminating multi-core cables
- Two solder pins per contact point for high mechanical stability

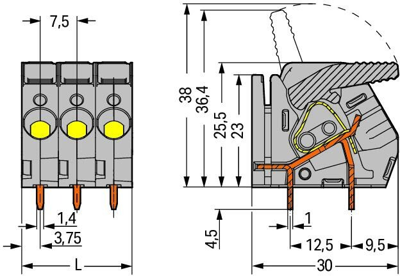

Technical specifications
| Anschluss | Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 20-10 | |
| Breite | 30 mm | |
| Farbe | grau | |
| Höhe | 30 mm | |
| Kontaktabstand | RM 7,5/12,5 | |
| Leiterquerschnitt | 0,5-6,0 mm² | |
| Nennspannung | 630 V | |
| Nennstrom | 41 A | |
| Polzahl | 4-polig | |
| Rastermaß | 7.5 mm | |
| Tiefe | 26 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
