2716-208 | WAGO
PCB terminal, 8 pole, pitch 15 mm, AWG 16-6, 76 A, cage clamp, gray, 2716-208
Unit Price (€ / pc.)
18.7187 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.72 € *
Price list
Quantity
Price per unit*
1 pcs.
18.7187 €
10 pcs.
17.2193 €
50 pcs.
15.6723 €
100 pcs.
14.1015 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 2716-208, WAGO
PCB terminal block, lever, 16 mm², pin spacing: 15 mm, 8-pole, CAGE CLAMP, 16.00 mm², gray.
Features
- High-current PCB terminal strips with lever-actuated CAGE CLAMP connection
- Tool-free termination – fingers open/close levers
- Several clamping units can be held open simultaneously – convenient for terminating multi-core cables
- Four solder pins per contact point for high mechanical stability
- Pin and dimensions compatible to high-current, screw-type terminal blocks

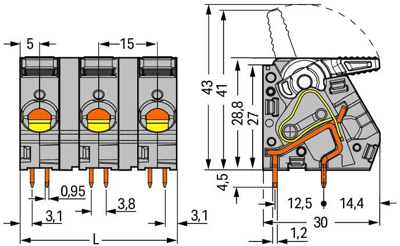

Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 16-6 | |
| Width | 116.5 mm | |
| Colour | gray | |
| Height | 33.3 mm | |
| Contact distance | RM 15/12.5 | |
| Cable cross-section | 1.5-16 mm² | |
| Rated voltage | 1 kV | |
| Rated current | 76 A | |
| Pin number | 8 pole | |
| Grid | 15 mm | |
| Depth | 30 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
