2716-258 | WAGO
PCB terminal, 8 pole, pitch 15 mm, AWG 16-6, 76 A, cage clamp, gray, 2716-258
Unit Price (€ / pc.)
17.4454 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
PCB terminal, 2716-258, WAGO
PCB terminal block, lever, 16 mm², pin spacing: 15 mm, 8-pole, CAGE CLAMP, 16.00 mm², gray.
Features
- High-current PCB terminal strips with lever-actuated CAGE CLAMP connection
- Tool-free termination – fingers open/close levers
- Several clamping units can be held open simultaneously – convenient for terminating multi-core cables
- Four solder pins per contact point for high mechanical stability

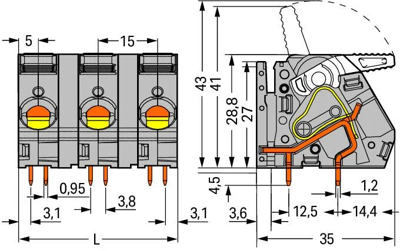

Technical specifications
| Anschluss | Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 16-6 | |
| Breite | 116.5 mm | |
| Farbe | grau | |
| Höhe | 33.3 mm | |
| Kontaktabstand | RM 15/12,5 | |
| Leiterquerschnitt | 1,5-16 mm² | |
| Nennspannung | 1 kV | |
| Nennstrom | 76 A | |
| Polzahl | 8-polig | |
| Rastermaß | 15 mm | |
| Tiefe | 30 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
