735-304 | WAGO
PCB terminal, 4 pole, pitch 5 mm, AWG 20-16, 10 A, push-in, gray, 735-304
Unit Price (€ / pc.)
1.5946 € *
Available: 35 pcs.
Leadtime: 1 Week **
Total Price:
1.59 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5946 €
10 pcs.
1.4756 €
50 pcs.
1.3328 €
100 pcs.
1.2019 €
*incl. VAT plus shipping costs
**Subject to prior sale

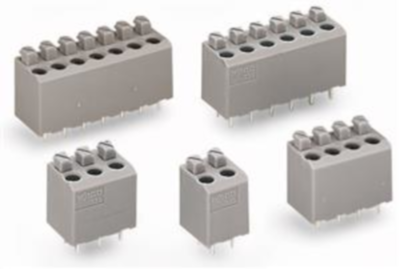

PCB terminal, 735-304, WAGO
PCB terminal block, push-button, 1.5 mm², pin spacing: 5 mm, 4-pole, PUSH WIRE, 1.50 mm², gray.
Features
- Compact PCB terminal blocks with push-buttons and PUSH WIRE connection
- Top-of-unit, push-button actuation and conductor termination save space on the PCB
- Push-in termination of solid conductors
- Terminal blocks can be arranged side-by-side without loss of poles

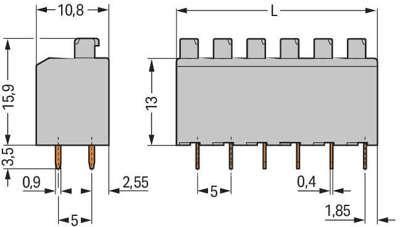

Technical specifications
| Connection | push-in | |
| AWG cross-section | AWG 20-16 | |
| Width | 20 mm | |
| Colour | gray | |
| Height | 19.4 mm | |
| Cable cross-section | 0.5-1.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 10 A | |
| Pin number | 4 pole | |
| Grid | 5 mm | |
| Depth | 10.8 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
