735-306/001-000 | WAGO
PCB terminal, 4 pole, pitch 5 mm, AWG 20-16, 10 A, push-in, gray, 735-306/001-000
Unit Price (€ / pc.)
1.4756 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
1.48 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4756 €
10 pcs.
1.3209 €
*incl. VAT plus shipping costs
**Subject to prior sale

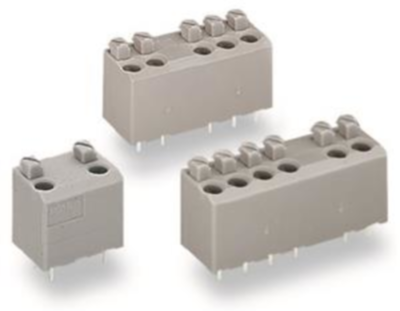

PCB terminal, 735-306/001-000, WAGO
PCB terminal block, push-button, 1.5 mm², pin spacing: 5 mm, 4-pole, PUSH WIRE, 1.50 mm², gray.
Features
- Compact PCB terminal blocks with push-buttons and PUSH WIRE connection
- Top-of-unit, push-button actuation and conductor termination save space on the PCB
- Push-in termination of solid conductors
- Terminal blocks can be arranged side-by-side without loss of poles
Technical specifications
| Anschluss | Push-in | |
| AWG-Leiterquerschnitt | AWG 20-16 | |
| Breite | 30 mm | |
| Farbe | grau | |
| Höhe | 19.4 mm | |
| Leiterquerschnitt | 0,5-1,5 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 10 A | |
| Polzahl | 4-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 10.8 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
