735-307/001-000 | WAGO
PCB terminal, 6 pole, pitch 5 mm, AWG 20-16, 10 A, push-in, gray, 735-307/001-000
Unit Price (€ / pc.)
2.2491 € *
Available: 0 pcs.
Leadtime: On Request **

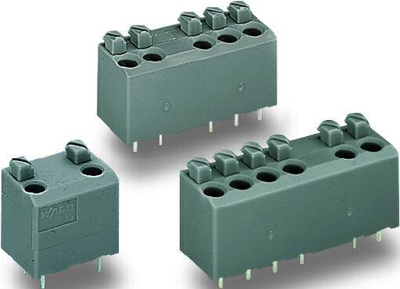

PCB terminal block, 735-307/001-000, WAGO
PCB terminal block, push-button, 1.5 mm², Pin spacing 5 mm, 6-pole, PUSH WIRE, 1.5 mm², gray.
Features
- Compact PCB terminal blocks with push-buttons and PUSH WIRE connection
- Top-of-unit, push-button actuation and conductor termination save space on the PCB
- Push-in termination of solid conductors
- Terminal blocks can be arranged side-by-side without loss of poles

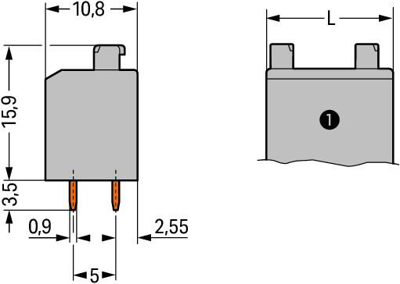

Technical specifications
| Connection | push-in | |
| AWG cross-section | AWG 20-16 | |
| Width | 35 mm | |
| Colour | gray | |
| Height | 19.4 mm | |
| Cable cross-section | 0.5-1.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 10 A | |
| Pin number | 6 pole | |
| Grid | 5 mm | |
| Depth | 10.8 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
