PCB terminal, 3 pole, pitch 5.08 mm, AWG 28-12, 21 A, cage clamp, orange, 736-303
Unit Price (€ / pc.)
3.5581 € *
Available: 0 pcs.
Leadtime: On Request **

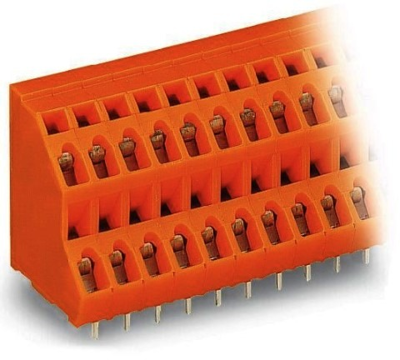

PCB terminal, 736-303, WAGO
Double-deck PCB terminal block, 2.5 mm², pin spacing: 5.08 mm, 6-pole, CAGE CLAMP, 2.50 mm², orange.
Features
- PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
- High-density, double-deck design for space-efficient wiring of multiple conductors in confined areas

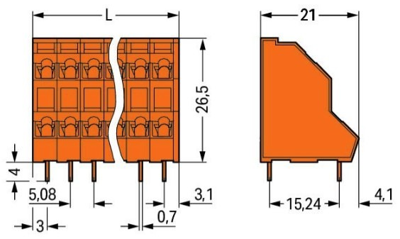

Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-12 | |
| Width | 16.24 mm | |
| Colour | orange | |
| Height | 30.5 mm | |
| Contact distance | RM 5.08/15.24 | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 21 A | |
| Pin number | 3 pole | |
| Grid | 5.08 mm | |
| Depth | 21 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
