736-606 | WAGO

PCB terminal, 12 pole, pitch 7.62 mm, AWG 28-12, 21 A, cage clamp, orange, 736-606

Order No.: 43P2070
EAN: 4044918909655
MPN:
736-606
Series: 736

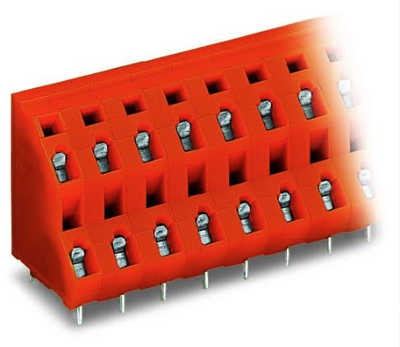

736-606 WAGO PCB Terminal Blocks Image 1

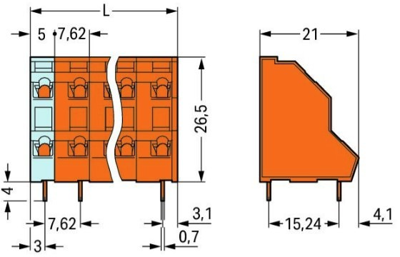

736-606 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
6.6521 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
6.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.6521 €

PCB terminal, 736-606, WAGO

Double-deck PCB terminal block, 2.5 mm², pin spacing: 7.62 mm, 12-pole, cage clamp, 2.50 mm², orange.

Features

  • PCB terminal strips with screwdriver-actuated cage clamp connection
  • High-density, double-deck design for space-efficient wiring of multiple conductors in confined areas
  • Overvoltage category: III
  • Pollution degree: 2
Technical specifications
Anschluss Käfigklemme
AWG-Leiterquerschnitt AWG 28-12
Breite 44.1 mm
Farbe orange
Höhe 30.5 mm
Kontaktabstand RM 7,62/15,24
Leiterquerschnitt 0,08-2,5 mm²
Nennspannung 630 V
Nennstrom 21 A
Polzahl 12-polig
Rastermaß 7.62 mm
Tiefe 21 mm
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
