738-224 | WAGO
PCB terminal, 96 pole, pitch 5 mm, AWG 28-12, 18 A, cage clamp, gray, 738-224
Unit Price (€ / pc.)
49.3017 € *
Available: 0 pcs.
Leadtime: On Request **

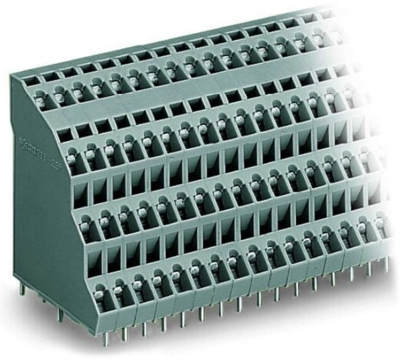

PCB terminal, 738-224, WAGO
Quadruple-deck PCB terminal block, 2.5 mm², pin spacing: 5 mm, 96-pole, CAGE CLAMP, 2.50 mm², gray.
Features
- PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
- High-density, quadruple-deck design for space-efficient wiring of multiple conductors in confined areas
- Angled conductor entry and CAGE CLAMP actuation streamline operation

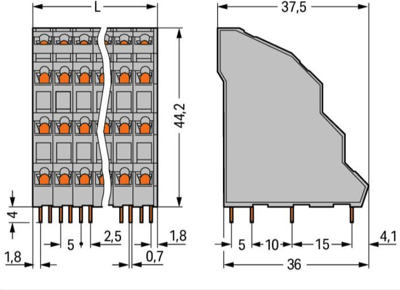

Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-12 | |
| Width | 121 mm | |
| Colour | gray | |
| Height | 48.2 mm | |
| Contact distance | RM 5/10/15 | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 18 A | |
| Pin number | 96 pole | |
| Grid | 5 mm | |
| Depth | 11 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
