741-408 | WAGO
PCB terminal, 8 pole, pitch 7.62 mm, AWG 28-12, 16 A, cage clamp, orange, 741-408
Unit Price (€ / pc.)
7.2233 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

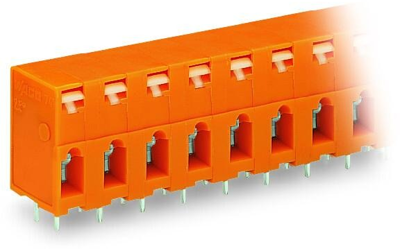

PCB terminal, 741-408, WAGO
PCB terminal block, push-button, 2.5 mm², pin spacing: 7.62 mm, 8-pole, CAGE CLAMP, 2.50 mm², orange.
Features
- Feedthrough PCB terminal strips with push-button actuated CAGE CLAMP
- Simple, push-button wiring
- Test slot integrated into upper-portion of conductor entry for test pins

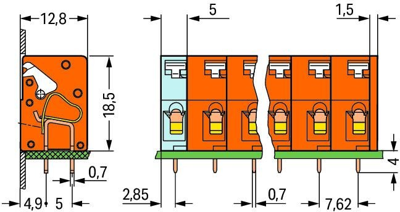

Technical specifications
| Anschluss | Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 28-12 | |
| Breite | 59.84 mm | |
| Farbe | orange | |
| Höhe | 22.5 mm | |
| Leiterquerschnitt | 0,08-2,5 mm² | |
| Nennspannung | 630 V | |
| Nennstrom | 16 A | |
| Polzahl | 8-polig | |
| Rastermaß | 7.62 mm | |
| Tiefe | 12.8 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
