744-392/364-000 | WAGO

PCB terminal, 2 pole, pitch 3.5 mm, AWG 20-16, 3 A, push-in, white, 744-392/364-000

Order No.: 44P9531
EAN: 4055143812740
MPN:
744-392/364-000
Series: 744
WAGO

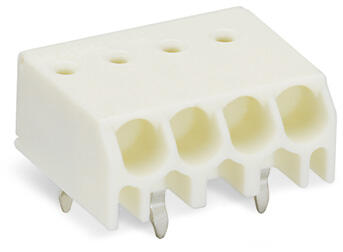

744-392/364-000 WAGO PCB Terminal Blocks Image 1

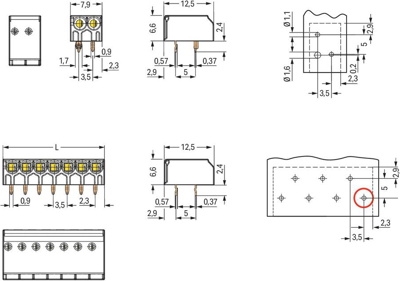

744-392/364-000 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.6069 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
0.61 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.6069 €

PCB terminal block, 744-392/364-000, WAGO

PCB terminal block, 1.5 mm², Pin spacing 3.5 mm, 2-pole, PUSH WIRE, 1.5 mm², white.

Features

  • PCB terminal blocks with PUSH WIRE connection
  • Push-in termination of solid conductors – low insertion forces
  • Conductor removal via disconnection tool or by twist & pull
Technical specifications
Connection push-in
AWG cross-section AWG 20-16
Width 7.9 mm
Colour white
Height 9 mm
Cable cross-section 0.5-1.5 mm²
Rated voltage 320 V
Rated current 3 A
Pin number 2 pole
Grid 3.5 mm
Depth 12.5 mm
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
