PCB terminal, 3 pole, pitch 5 mm, AWG 28-12, 32 A, cage clamp, gray, 745-103
Unit Price (€ / pc.)
2.2848 € *
Available: 0 pcs.
Leadtime: On Request **
PCB terminal, 745-103, WAGO
PCB terminal block, 4 mm², pin spacing: 5 mm, 3-pole, CAGE CLAMP, 4.00 mm², gray.
Features
- PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
- Common and distribute potentials via comb-style jumper bars
- Double solder pins for high mechanical stability
- Integrated testing tap

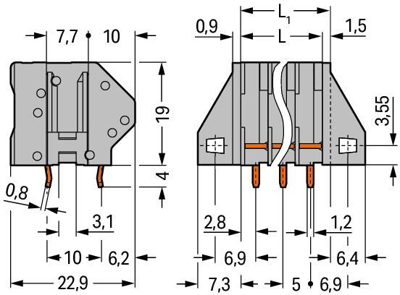

Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-12 | |
| Width | 16.5 mm | |
| Colour | gray | |
| Height | 23 mm | |
| Contact distance | RM 5/10 | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated voltage | 320 V | |
| Rated current | 32 A | |
| Pin number | 3 pole | |
| Grid | 5 mm | |
| Depth | 22.9 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
