745-302 | WAGO
PCB terminal, 2 pole, pitch 7.5 mm, AWG 24-10, 41 A, cage clamp, gray, 745-302
Unit Price (€ / pc.)
2.2015 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

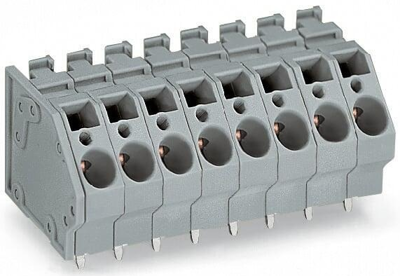

PCB terminal, 745-302, WAGO
PCB terminal block, 6 mm², pin spacing: 7.5 mm, 2-pole, cage clamp, 6.00 mm², gray.
Features
- PCB terminal strips with screwdriver-actuated cage clamp connection
- Common and distribute potentials via comb-style jumper bars
- Double solder pins for high mechanical stability
- Integrated testing tap
- Marker slot for Mini-WSB markers

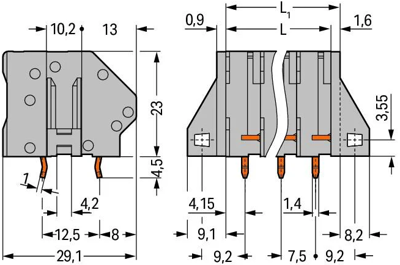

Technical specifications
| Pin number | 2-polig | |
| Grid | 7.5 mm | |
| Cable cross-section | 0,2-6,0 mm² | |
| AWG cross-section | AWG 24-10 | |
| Contact distance | RM 7,5/12,5 | |
| Rated current | 41 A | |
| Rated voltage | 630 V | |
| Width | 16.6 mm | |
| Height | 27.5 mm | |
| Depth | 29.1 mm | |
| Connection | Käfigklemme | |
| Colour | grau |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
