745-304 | WAGO

PCB terminal, 4 pole, pitch 7.5 mm, AWG 24-10, 41 A, cage clamp, gray, 745-304

Order No.: 44P4987
EAN: 4044918302135
MPN:
745-304
Series: 745
WAGO

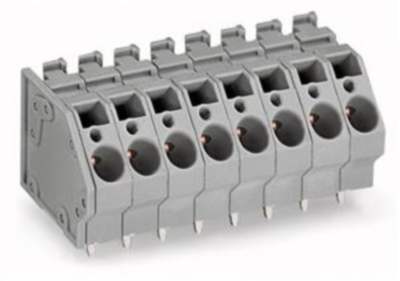

745-304 WAGO PCB Terminal Blocks Image 1

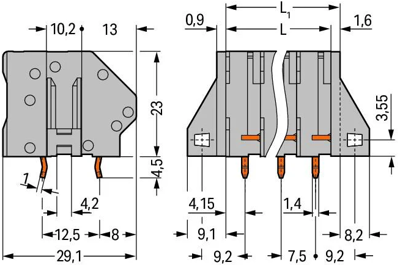

745-304 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
3.8675 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.8675 €

PCB terminal, 745-304, WAGO

PCB terminal block, 6 mm², pin spacing: 7.5 mm, 4-pole, CAGE CLAMP, 6.00 mm², gray.

Features

  • PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
  • Common and distribute potentials via comb-style jumper bars
  • Double solder pins for high mechanical stability
  • Integrated testing tap
Technical specifications
Connection cage clamp
AWG cross-section AWG 24-10
Width 31.6 mm
Colour gray
Height 27.5 mm
Contact distance RM 7.5/12.5
Cable cross-section 0.2-6.0 mm²
Rated voltage 630 V
Rated current 41 A
Pin number 4 pole
Grid 7.5 mm
Depth 29.1 mm
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
