745-3112 | WAGO

PCB terminal, 12 pole, pitch 5 mm, AWG 28-12, 32 A, cage clamp, gray, 745-3112

Order No.: 44P5005
EAN: 4045454153762
MPN:
745-3112
Series: 745
WAGO

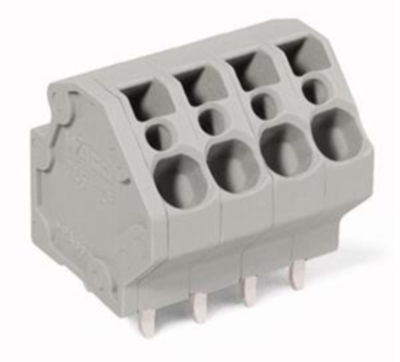

745-3112 WAGO PCB Terminal Blocks Image 1
745-3112 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
7.2471 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.2471 €

PCB terminal, 745-3112, WAGO

PCB terminal block, 4 mm², pin spacing: 5 mm, 12-pole, CAGE CLAMP, 4.00 mm², gray.

Features

  • PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
  • Double solder pins for high mechanical stability
  • Integrated testing tap
Technical specifications
Connection cage clamp
AWG cross-section AWG 28-12
Width 61.5 mm
Colour gray
Height 23 mm
Contact distance RM 5/10
Cable cross-section 0.08-4.0 mm²
Rated voltage 320 V
Rated current 32 A
Pin number 12 pole
Grid 5 mm
Depth 22.9 mm
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
