745-312 | WAGO
PCB terminal, 12 pole, pitch 7.5 mm, AWG 24-10, 41 A, cage clamp, gray, 745-312
Unit Price (€ / pc.)
12.9948 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
PCB terminal, 745-312, WAGO
PCB terminal block, 6 mm², pin spacing: 7.5 mm, 12-pole, CAGE CLAMP, 6.00 mm², gray.
Features
- PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
- Common and distribute potentials via comb-style jumper bars
- Double solder pins for high mechanical stability
- Integrated testing tap

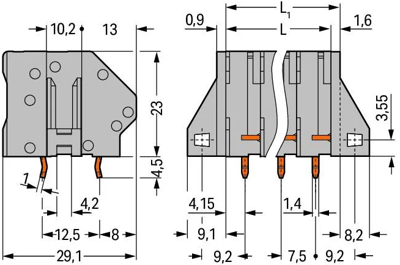

Technical specifications
| Anschluss | Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-10 | |
| Breite | 91.6 mm | |
| Farbe | grau | |
| Höhe | 27.5 mm | |
| Kontaktabstand | RM 7,5/12,5 | |
| Leiterquerschnitt | 0,2-6,0 mm² | |
| Nennspannung | 630 V | |
| Nennstrom | 41 A | |
| Polzahl | 12-polig | |
| Rastermaß | 7.5 mm | |
| Tiefe | 29.1 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
