745-3158 | WAGO
PCB terminal, 8 pole, pitch 7.5 mm, AWG 28-12, 32 A, cage clamp, gray, 745-3158
Unit Price (€ / pc.)
5.4978 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
PCB terminal, 745-3158, WAGO
PCB terminal block, 4 mm², pin spacing: 7.5 mm, 8-pole, CAGE CLAMP, 4.00 mm², gray.
Features
- Terminal strips with screwdriver-actuated CAGE CLAMP connection
- Double solder pins for high mechanical stability
- Integrated testing tap

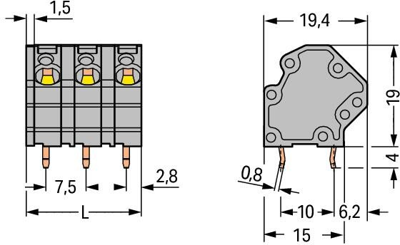

Technical specifications
| Anschluss | Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 28-12 | |
| Breite | 59 mm | |
| Farbe | grau | |
| Höhe | 27.5 mm | |
| Kontaktabstand | RM 7,5/12,5 | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| Nennspannung | 630 V | |
| Nennstrom | 32 A | |
| Polzahl | 8-polig | |
| Rastermaß | 7.5 mm | |
| Tiefe | 22.9 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
