745-3160 | WAGO
PCB terminal, 10 pole, pitch 7.5 mm, AWG 28-12, 32 A, cage clamp, gray, 745-3160
Unit Price (€ / pc.)
6.7592 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

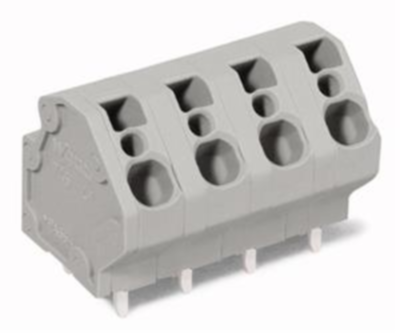

PCB terminal, 745-3160, WAGO
PCB terminal block, 4 mm², pin spacing: 7.5 mm, 10-pole, cage clamp, 4.00 mm², gray.
Features
- Terminal strips with screwdriver-actuated cage clamp connection
- Space-saving configuration of terminal strips when placed behind each other
- Double solder pins for high mechanical stability
- Integrated testing tap

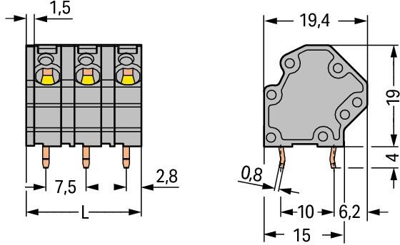

Technical specifications
| Anschluss | Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 28-12 | |
| Breite | 74 mm | |
| Farbe | grau | |
| Höhe | 27.5 mm | |
| Kontaktabstand | RM 7,5/12,5 | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| Nennspannung | 630 V | |
| Nennstrom | 32 A | |
| Polzahl | 10-polig | |
| Rastermaß | 7.5 mm | |
| Tiefe | 19.4 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
